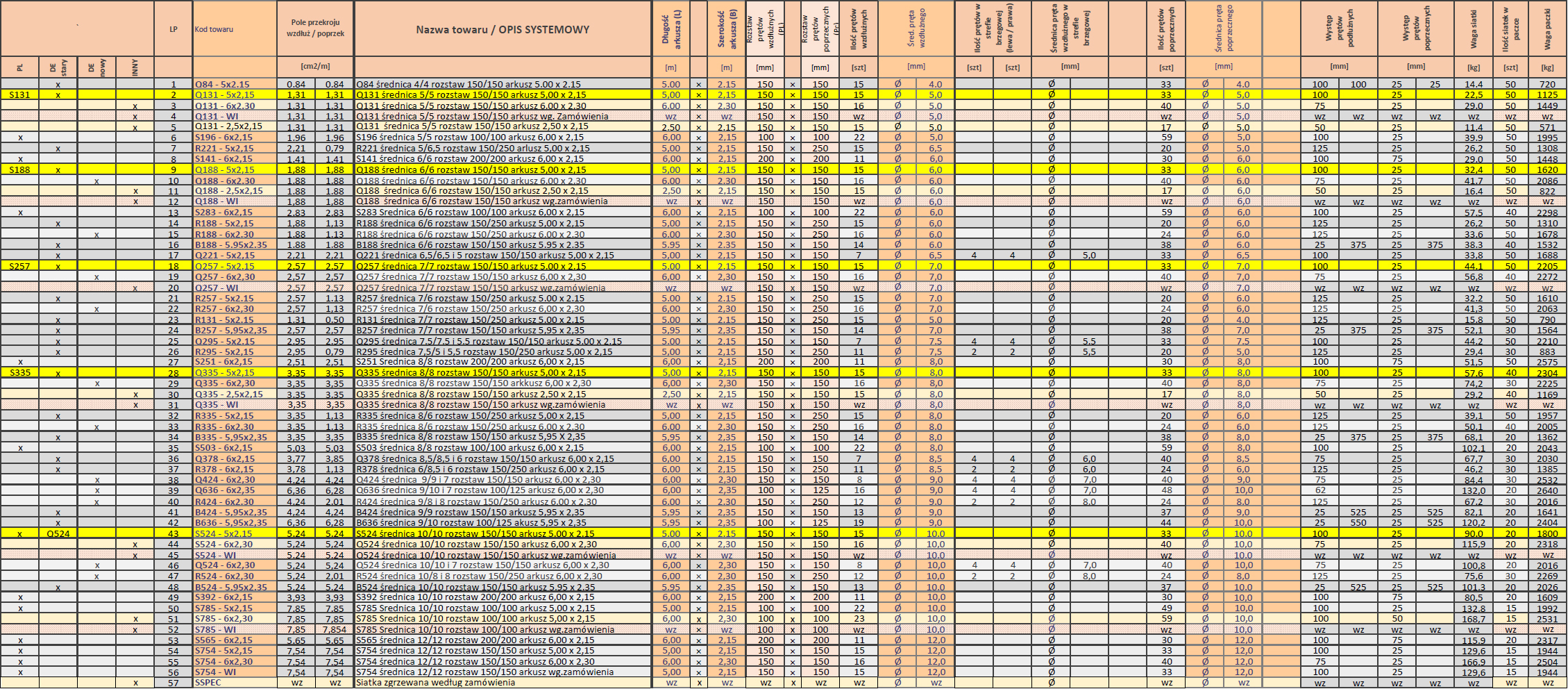

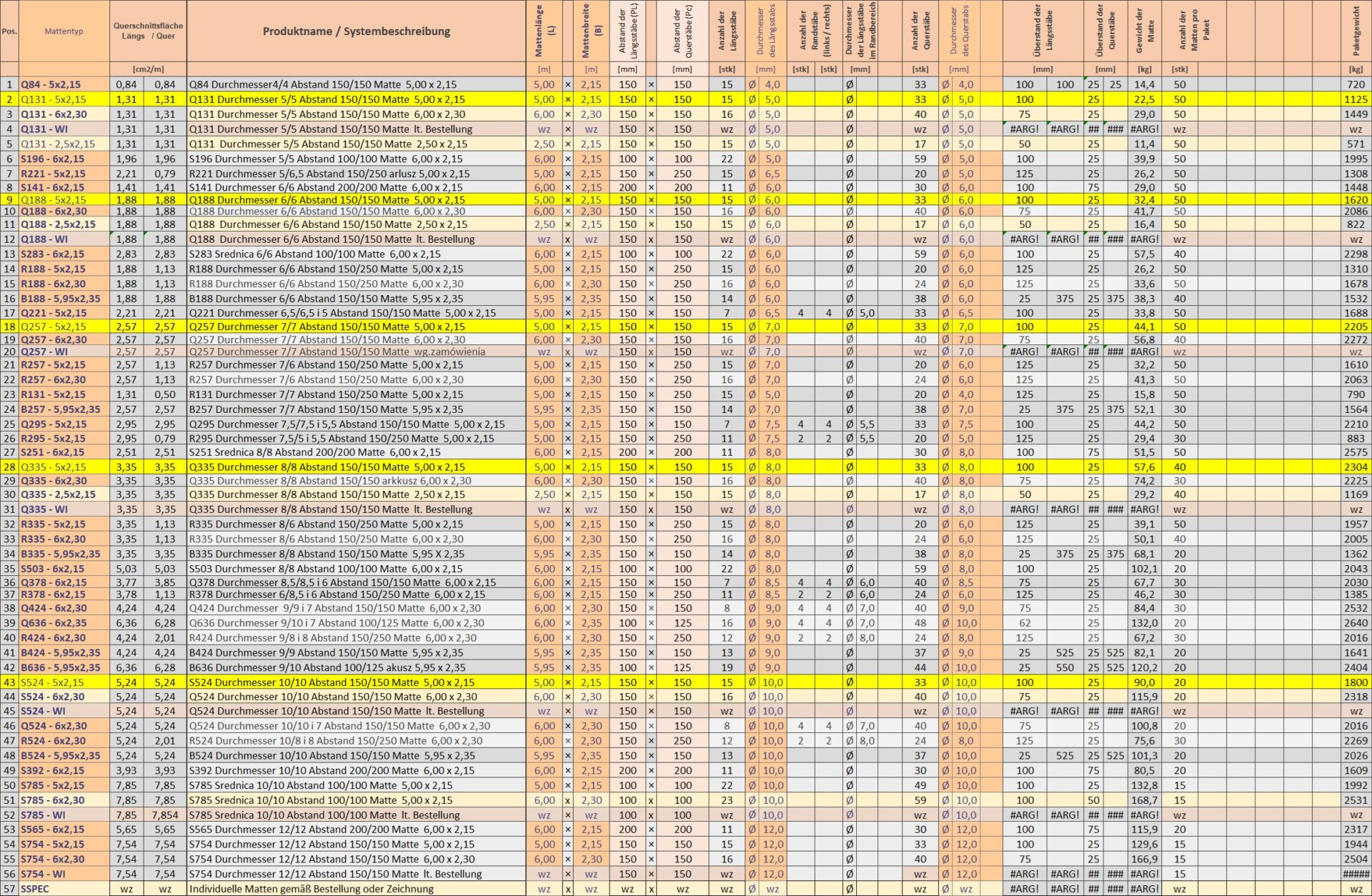

We offer reinforcing meshes with the following structural parameters:
- Wire diameters: from Ø4 to Ø12
- Maximum mesh dimensions: 12000 × 3400 mm
- Minimum mesh dimensions: 1020 × 500 mm
- Bar spacing: 50 mm (and multiples thereof)
- Minimum overhang length: 25 mm
- Specification: EN 1992-1-1
- Steel grade: B500A, ductility class A, yield strength = Re 500 MPa
In addition to standard reinforcing meshes, we can also manufacture meshes with non-standard dimensions based on the documentation provided by our customers upon request.
